Henryuan universal plug 14.8V lithium battery charger 16.8V 1A adapters are approved by the safety certificates UL, cUL, ETL, FCC, CE, GS, UKCA, SAA, PSE, CCC with AU, EU, UK, US, JP, CN wall plugs. High quality 16.8V 1A li-ion battery chargers used for the 4S 14.8V li-ion battery. Advanced charging scheme design, having multiple protection mechanisms with high quality components, which make charging safer and faster.It is used as a 14.8V lithium battery charger, power tool charger, educational robot charger, electric toy charger LED desk lamp charger, flashlight charger, diving lamp charger, GPS module charger, respirator charger, etc
1. SAFETY CERTIFICATES:
UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC
2. Input:
Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：47Hz-63Hz
Input Current：0.6A
Inrush Current： 35A
3. Output:
Interchangeable plug 4S 14.8V lithium ion battery universal 16.8V 1A charger with US, JP, EU, AU, UK wall plugs, LED dual color indicator light, displaying charging status, red during charging, fully charged, green LED.
|
Charging Status
|
Charging Stage
|
Output current
|
Output voltage
|
LED indicator
|
|
Charging
|
Constant Current
|
1A
|
10V-16.8V
|
RED
|
|
Constant Voltage
|
1A->0.2A
|
16.8V
|
RED
|
|
Fully charge
|
Trickle Charging
|
0.2A->0
|
16.8V
|
GREEN
|

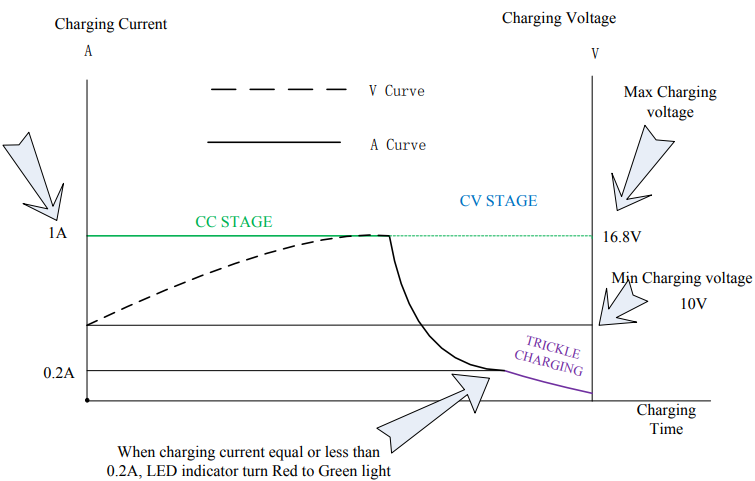

4. CHARGING CURVE:
5. PROTECTION FEATURE
Over current protection, Over voltage protection, Short circuit protection, reverse polarity protection
6. QUALITY ASSURANCE
1. A team of sales engineers with over a decade of experience, able to accurately understand customer needs
2. A rigorous system for selecting raw material suppliers
3. Strict incoming material inspection process
4. Experienced engineers with material solutions design for more than 20 years
5. Skilled production stuff and advanced production testing equipment
6.100% aging testing process, up to 4 hours of full load aging
7. A comprehensive after-sales system with analysis, feedback, and resolution system within 48 hours
Henryuan Group is a strong company with more than 13 years of experience in the production and R&D of lithium battery chargers and is a leading supplier in the industry. Its high-quality 16.8V 1A Li-ion battery charger is known for its superior performance and safety features, making it a popular choice among consumers worldwide. They are exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan and other countries and regions with a high market share. The charging safely and quickly, making them ideal for a variety of applications. Good EMI performance and experienced engineers are able to perfectly meet customer requirements for existing products or products in the development stage.In short, the high-quality 16.8V 1A Li-ion battery charger is a reliable and efficient solution for your charging needs. There are other models of 16.8V chargers, such as 0.5A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A 7A, 8A, 10A, 15A etc . If you are looking for a safe, reliable, and efficient lithium battery charger, just start by contacting Henryuan's sales engineers.
